I210
Prevents Multi-Camera Interference(MCI)

Multi Camera Sync Solution

MCS Hub

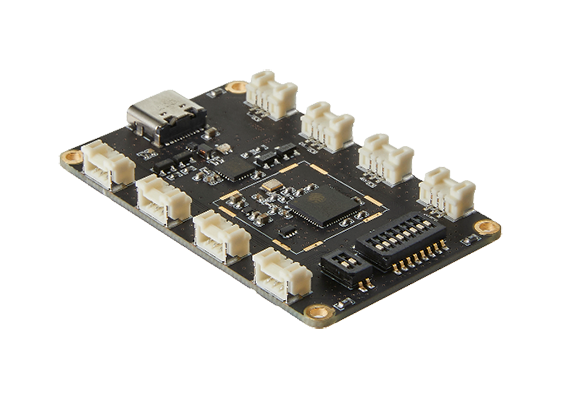

I210
  • Max 8 Channel Support
  • Supported Camera : S100D, S111D,I200D
Datasheet&Download Where to Buy

SPECIFICATION

  • Controller
  • Controller ESP32-S2
  • Memory Internal memory : 4M-bit
  • Sync signal(Out)
  • Channel Max 8 Channel Support (Count Change on Settings)
  • Voltage level +3.3V or +5V
  • Frequency 5 ~ 27.5 Hz (Different Output Frequency on Settings)
  • Clock
  • Clock 40 MHz (±10 ppm)
  • Control Interface
  • Control interface USB 2.0 (Type C)
  • Power
  • Input DC 5V (USB Power)
  • Power consumption Average 0.3W / Max 0.5W
  • Control mode
  • Software MCS Hub (Windows only)
  • Switch DIP Switch
  • Environment
  • Operating Temperature -5 ~ 55℃
  • Storage Temperature -20 ~ 70℃
  • Operating Rel. humidity 5 ~ 95%
  • Storage Rel. humidity 5 ~ 95%
  • Mechanics
  • Dimensions 55.0 x 35.0 x 6.75 mm
  • Weight 8.6 g (Board only)
  • Certification
  • Conformity KC, CE, FCC
