S100D
Wide FoV (Field of View)

ToF 3D Depth Camera

S111D

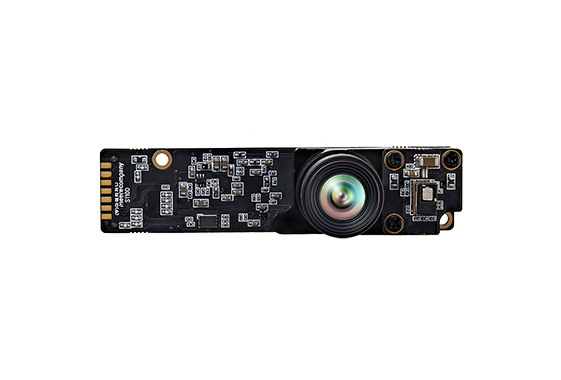

S100D
  • TRUE VGA Resolution
  • Compact Design
  • Built-In Companion Chip
Where to Buy Datasheet Download

SPECIFICATION

  • Operating Range 0.2 ~ 3.0m
  • Illuminator VCSEL 940nm, 4W x 1ea
  • Depth Pixel Count True VGA (640 X 480)
  • Field of View (H,V) 90°(H) X 68°(V)
  • Output Data(bit) Depth / Amplitude / Point Cloud
  • Accuracy 10mm up to 1m, 1% by distance >
  • INTERFACE
  • Data Interface MIPI / USB
  • Frame Rate 7.5, 15, 30 fps
  • SOFTWARE (SDK)
  • USB Drivers Windows(x64), Linux(x64)
  • API C++, Python
  • Operating System Linux/Windows/Android/ROS1/ROS2
  • DIMENSION
  • Dimension MIPI: 63mm X 15mm X 22mm
  • WEIGHT
  • WEIGHT MIPI: 9.9g / USB: 15.3g
  • POWER
  • Power Consumption 1.5W (Average) / 15W(Peak)
  • Input Power Voltage 5 VDC
  • Operating Temperature 0°C ~ 40°C
  • Ambient Lighting Conditions Indoor and Outdoor
  • Eye Safety Certification IEC 60825-1:2014 (3rd Edition) Class 1
